Aracer AF3 Wideband Module (02AR0213) - For Aracer ECU

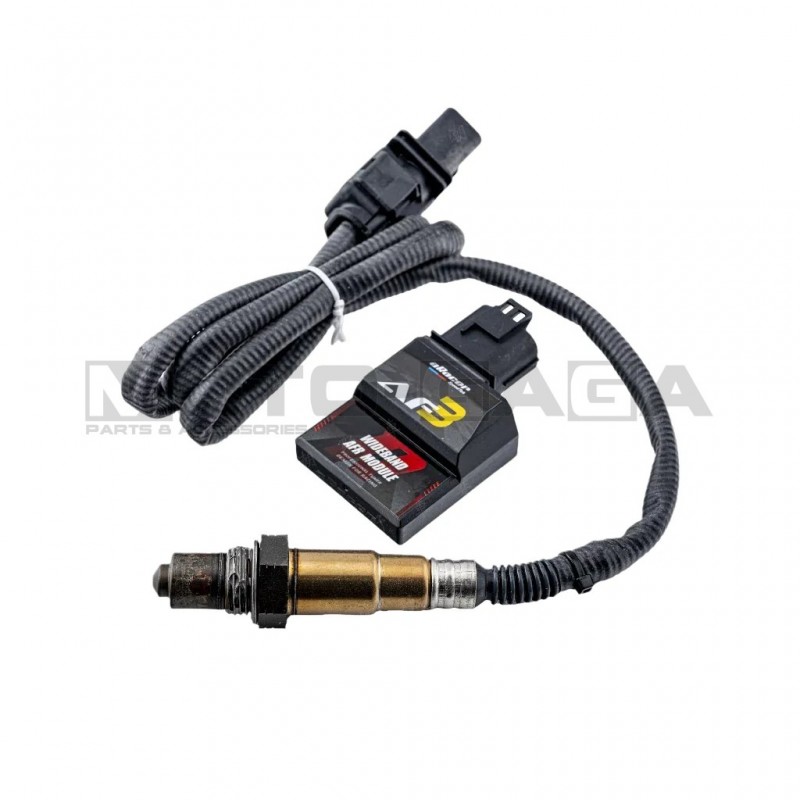

The UMA/ARacer wideband air/fuel ratio (AFR) module is a closed loop monitoring module for exhaust o2 levels. Accurately measure and tune easier with this module. Plug and play use with ARacer ECUs.

Compatible with ARACER MiniX and MiniXX, SuperX, SuperXX only. NOT Compatible with UMA ecus.

Details:

• Compatible with BOSCH LSU 4.9 and LSU 4.2 sensors
• High exhaust temperature warning (>800°C)
• Advanced O2 heater control & over-temperature protection
• Enhanced digital transmission speed by 10%
• Supports ECU & BOSCH O2 sensor fault code detection
• Compatible with ethanol-blended fuels: E30, E50, E85
• Only supports Super X & Mini X ECU, software version must be S120 or above

Product code: 02AR0213

Fitting (other):

All Aracer/UMA racing ECUs

Some bikes such as…

Honda RS150R/Winner/Supra/GTR150/Sonic (2016)

Honda CB150R/CBR150R (K45G) (2016)

Yamaha Y15ZR/Jupiter MX King/Spark/Exciter/Sniper T150 (non-VVA)

Yamaha YZF-R15 V2/MT-15/Fz150i Vixion V2(2014-17) (non-VVA)

Yamaha YZF-R15V3/MT-15/Fz150i-R (2018) (VVA)

Yamaha NVX/Aerox155/ NMAX 155 (VVA)

Yamaha YZF-R25/R3

Yamaha Xmax 250/300 (2018)

and many more…
